We at RM Engineering were tasked with conducting a detailed 3D inspection on a flat plate fixture. The fixture measured 2130 x 1225 x 37 mm and featured multiple holes. The project required strict adherence to Geometric Dimensioning and Tolerancing (GD&T) standards to ensure precision and reliability.
Objectives
- Perform a comprehensive 3D inspection of the flat plate fixture.
- Ensure the inspection complies fully with GD&T standards.
- Demonstrate the ability to handle large and complex components with high accuracy and efficiency.
Methodology
- Initial Assessment:
- We began with an initial assessment of the flat plate fixture to understand the scope and complexity of the inspection.
- Preparation:
- The fixture was prepared for inspection by cleaning and setting it up in a controlled environment to minimize external influences on the measurements.
- 3D Inspection Process:

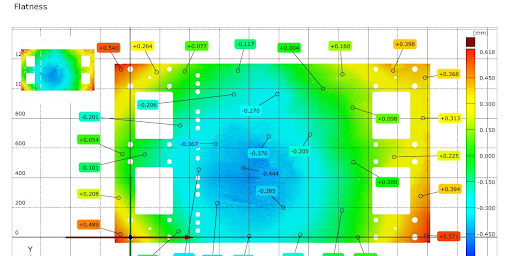

- Using advanced 3D scanning technology, we conducted a thorough inspection of the fixture. This involved capturing high-resolution data points across the entire surface and internal structures of the plate.
- Special attention was given to the multiple holes in the fixture to ensure each one met the specified tolerances.
- 4. GD&T Compliance Check:
- The collected data was analyzed to verify that the dimensions and geometries conformed to GD&T standards. Any deviations were documented and assessed for their impact on the overall functionality of the fixture.
Results
- Accuracy:
- The 3D inspection confirmed that the flat plate fixture was manufactured within the required tolerances, with all measurements falling within acceptable ranges specified by GD&T standards.
- Efficiency:
- The project was completed efficiently, demonstrating our capability to handle large and complex components without compromising on precision.
Conclusion
This case study underscores our expertise in providing precise and reliable 3D inspection services. Our ability to ensure full compliance with GD&T standards on a large and complex fixture highlights our technical proficiency and commitment to quality. This project showcases our capability to deliver high-accuracy inspections, reinforcing our reputation as a leader in engineering inspection services.
